Ford Transit 2″ Lift Kit with Adjustable Control Arms



  • Provides a 2″ lift from factory height
  • AWD kit can be paired with Bilstein B6 struts with no CV binding.
  • Features our custom designed adjustable control arm.

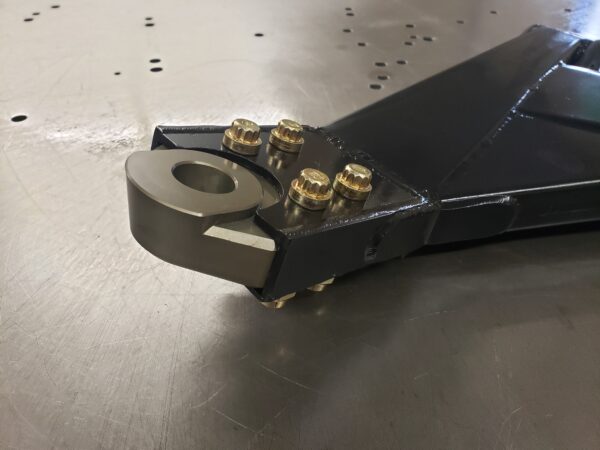

  • Adjusting block can be used to correct wheel camber
  • Front and rear anodized aluminum spacer blocks

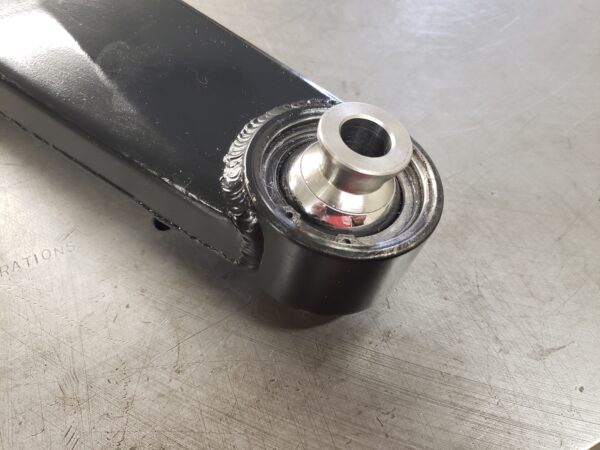

  • Uses a Heavy Duty spherical bearing rather than a rubber bushing on frame connection point.
SKU: N/A Category:

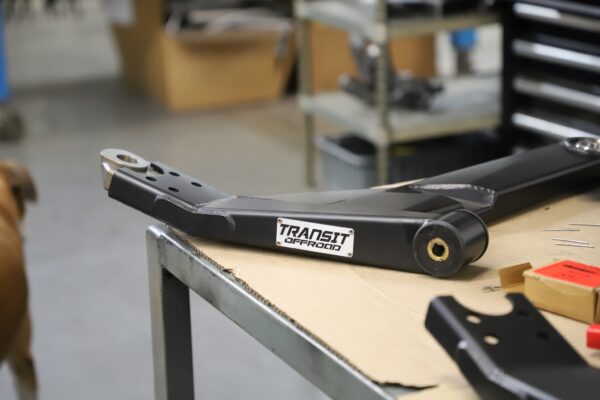

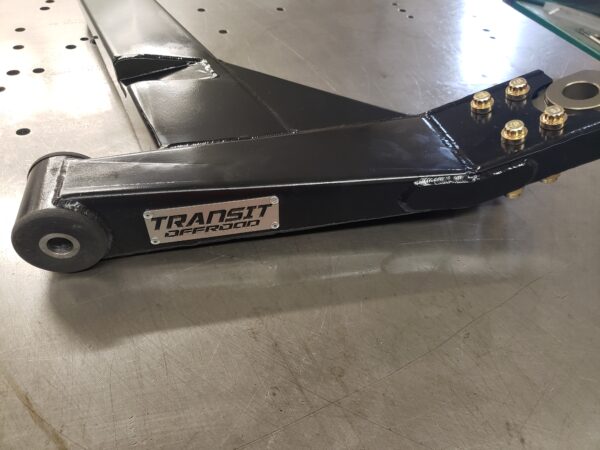

This is a 2″ lift kit for 2015-2019 Ford Transit 2WD/AWD vans. This kit includes our custom designed lower control arms which feature an adjuster block used to correct wheel camber. The kit also includes front and rear spacer blocks made out of billet aluminum and hard anodized for extra protection. In addition, our control arms use Heavy Duty spherical bearings rather than a rubber bushings the the rear articulating connection to the frame.

Transit Lift Kit Adj. Instructions

Additional information

Weight 55 lbs
Dimensions 21 × 21 × 7 in
Model Year

2015-2017, 2018-2019, 2020+

Rear Wheel Type

Single, Dually

Drive Type
